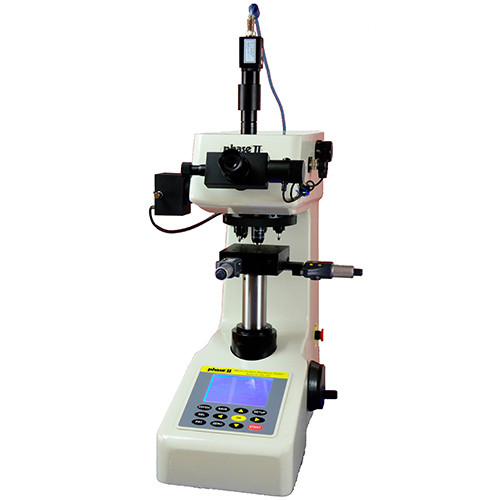

This Micro Vickers hardness tester is a precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments.
Technical Features:
- Testing Range: 1HV~2967HV
- Test Forces: 10 g - 1000 g
- Max Specimen Height: 2.75" (70mm)
- Microscope Magnification: 100×，400×
- Dwell Time: 5-60 s
- Dimension of the XY Table: 100 × 100 mm
- Movement Field of the XY Table: 25×25mm
- Light source/Power Supply:110/220V,60/50Hz/Cold Light Source
- Weight/Gross Weight: 41.5kg Net Weight: 35kg
- Package Dimensions: 425×245×490mm
- Auto Measurement Software
Main Accessories for Phase II Vickers Hardness Tester Model 900-391:
- Base Machine w/ Auto-Turret
- X-Y Stage w/ Micrometer
- Mini Thin Part Holding Fixture
- Mini Drill Chuck Fixture
- Mini Vise fixture
- Video Cam w/Adapter
- Measurement Software
- USB Cable
